One Operator Can Safely Handle Any Job. Reduce injury when transporting materials due to the lifter’s ergonomic design. Jobs remain in mint condition thanks to the hydraulic foot pump that adjusts in height from 34” to 42” to fit most printers and finishing equipment.

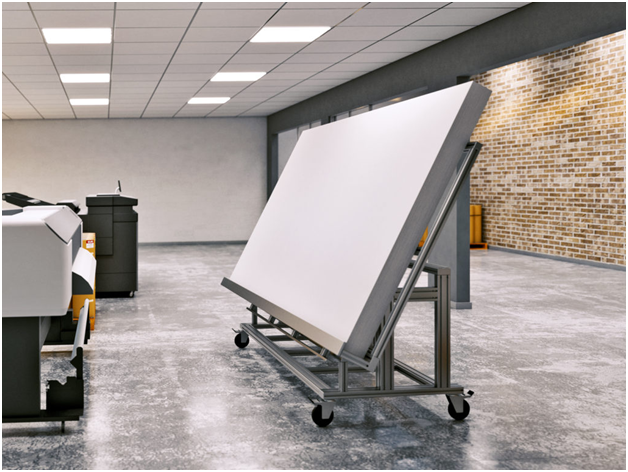

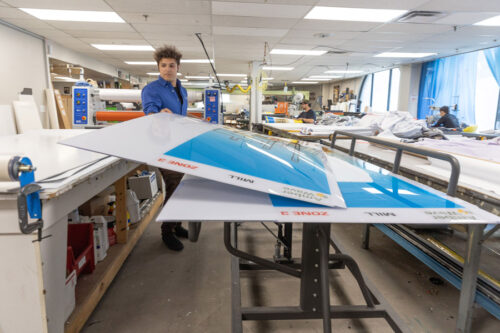

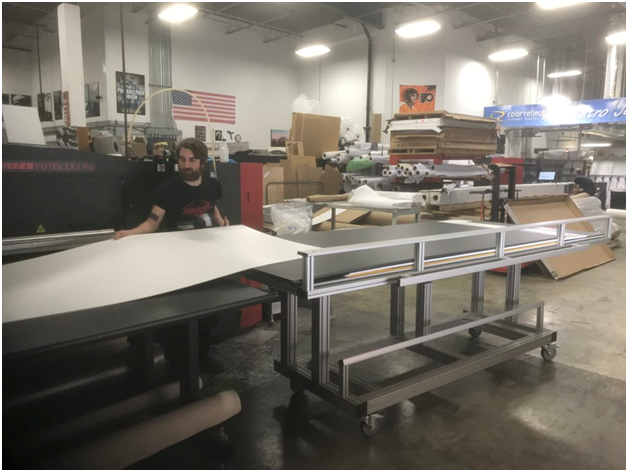

The All-A-Board Lifter® moves rigid substrates through narrow aisles, doors and between machinery.  Feed boards into printers and use as a mobile workbench to meet changing workflow and space requirements.

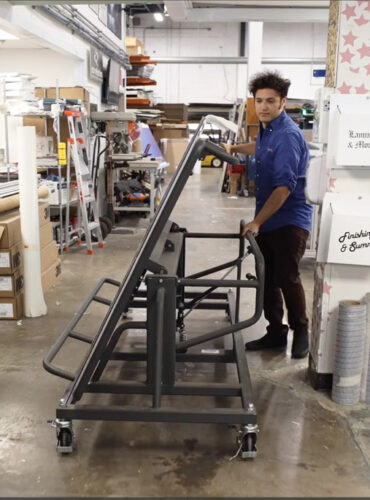

Handle along the back of the frame allows operators to maneuver and rotate tabletop from vertical to flat position. Pull handle allows operator to easily release latch mechanism and return table to vertical position.

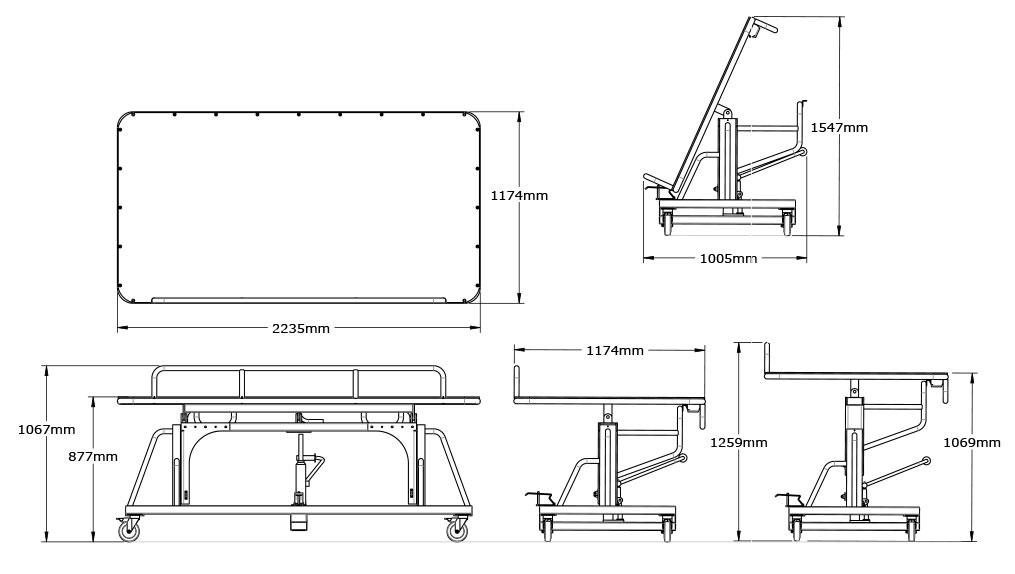

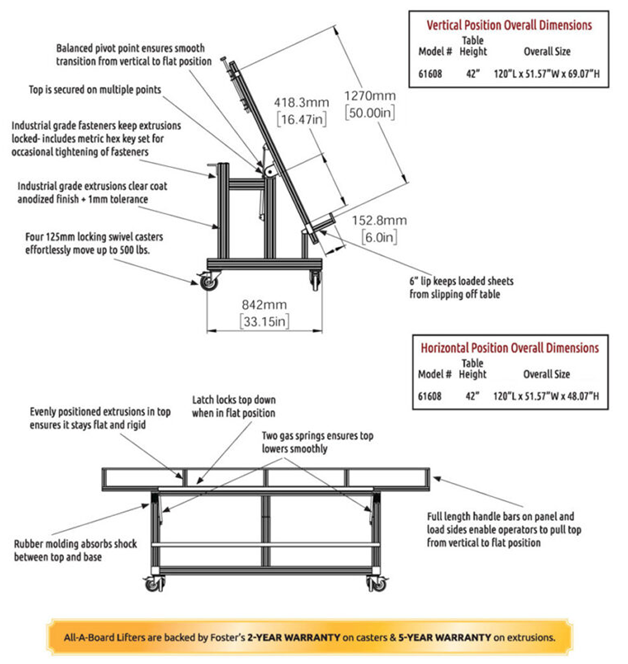

Design Features:

• Maximum Board Size: Model 61613 – 5’ x 10’
• Maximum Board Size: Model 61612 – 4’ x 8’
• Maximum Weight Capacity 500 lbs.
• Min/Max Deck Height 34” – 42” H
• Max. Tilting Angle 66º (at 32” H)
• 3-ft. wide tilt in the vertical position guides the user through narrow aisles, doorways and around tight corners

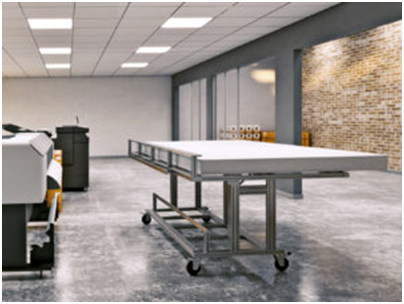

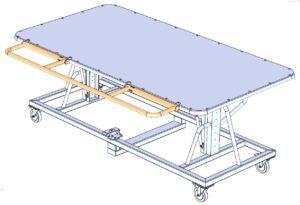

• Functions as a workbench or table in a flat position
• Durable high-pressure laminate surface, fastened to Lifter frame with counter-sunk hardware (Flat Head Cap Screws) that prevent scratching and is impact resistant
• Four heavy-duty 5” diameter swivel locking casters for smooth maneuvering
• Welded steel frame ensures long-lasting use
• Warranty: 2-year warranty on hydraulics. 5-year warranty on the frame
