Power Jumbo 70” On-A-Roll® Lifter Model 61599

Best for fabric printing and finishing applications. With a Powerful 12-volt DC motor, the On-a-Roll Lifter Power Jumbo allows one operator to easily lift and lower rolls as heavy as 990 lbs., as wide as 16 feet 5 inches and with diameters as great as 19.6 inches. This motorized lifter securely positions large and heavy rolls while providing a safe, effortless and efficient solution for handling.
Important Features
- Powerful DC motor easily lifts and lowers rolls, eliminating manual labor
- Power lift reduces roll changeover time
- Pair of heavy-duty swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- One-person operation saves time and labor
2-year warranty on all wheels, hydraulics and media tray.
5 -year warranty on cross bars
1-Year Warranty under normal use for battery and electric motor
| SPECIFICATIONS | MODEL 61599 |
| ROLL WEIGHT CAPACITY | 990 lbs. |
| MAX. LIFT HEIGHT | 70”* |
| MAX. ROLL WIDTH | 16.’ 5” |
| MAX. ROLL DIAMETER | 19.6” |
| WIDTH X DEPTH | 47.24” x 30.51” |
| HEIGHT | 72.25” |
| Weight | 375 lbs. |
| BOTTOM FORK CLEARANCE | 4.33” |
| Electric | 12V/60AH DC motor |
| Battery | Maintenance free lead acid battery |
| Charger | Built-In 110V charger |
Explanation:
Lift height is measured from the floor to the center of a 12” diameter roll in the tray.

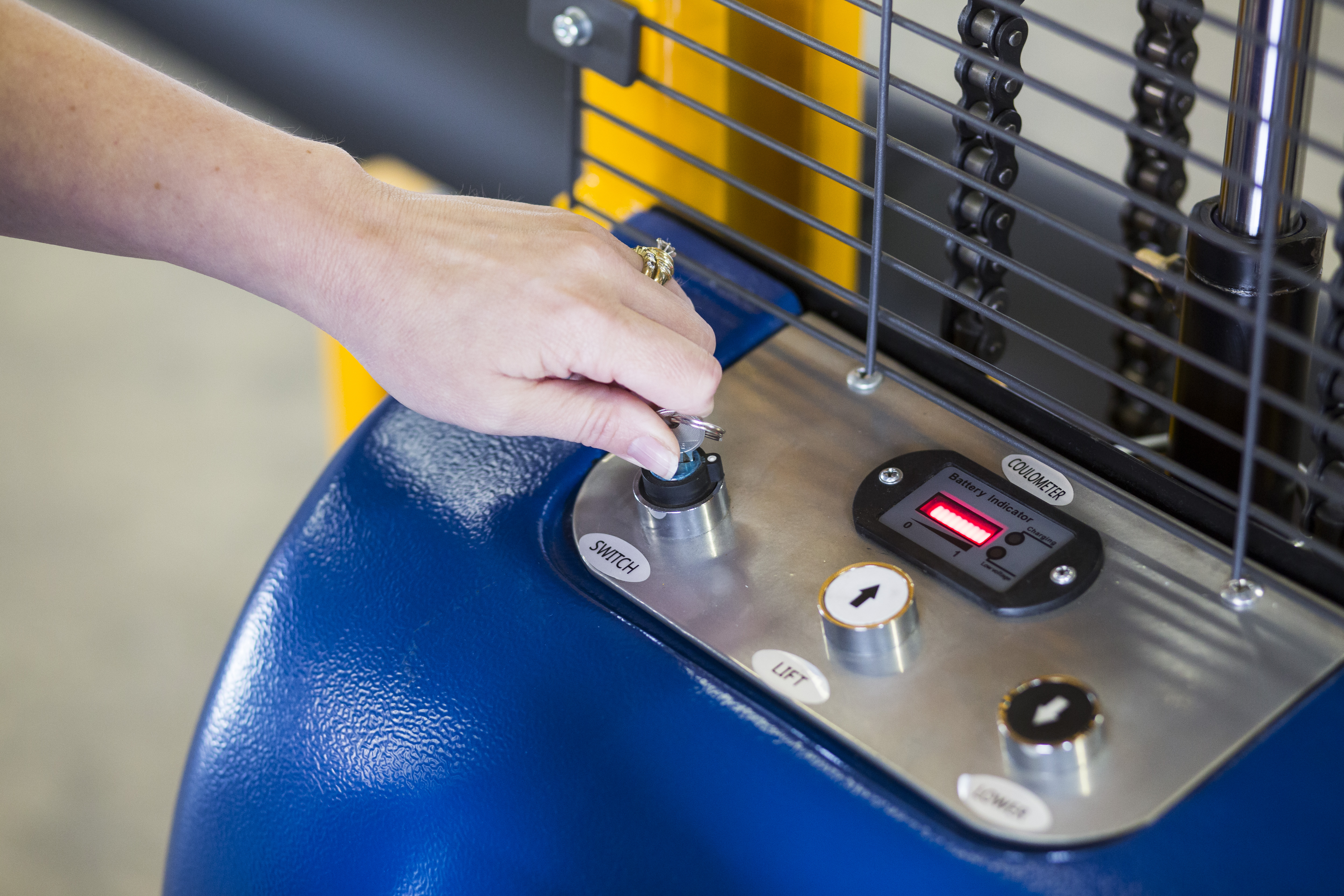

61595/61599 Controls on Power Jumbo

With the push of a button the Power Jumbo easily lifts and lowers
Optional Trays for Power Jumbo
63119 Roller Ball Tray

#63119 Roller Ball Bearing Tray allows operators to access and load rolls stored in racks directly onto the tray without lifting

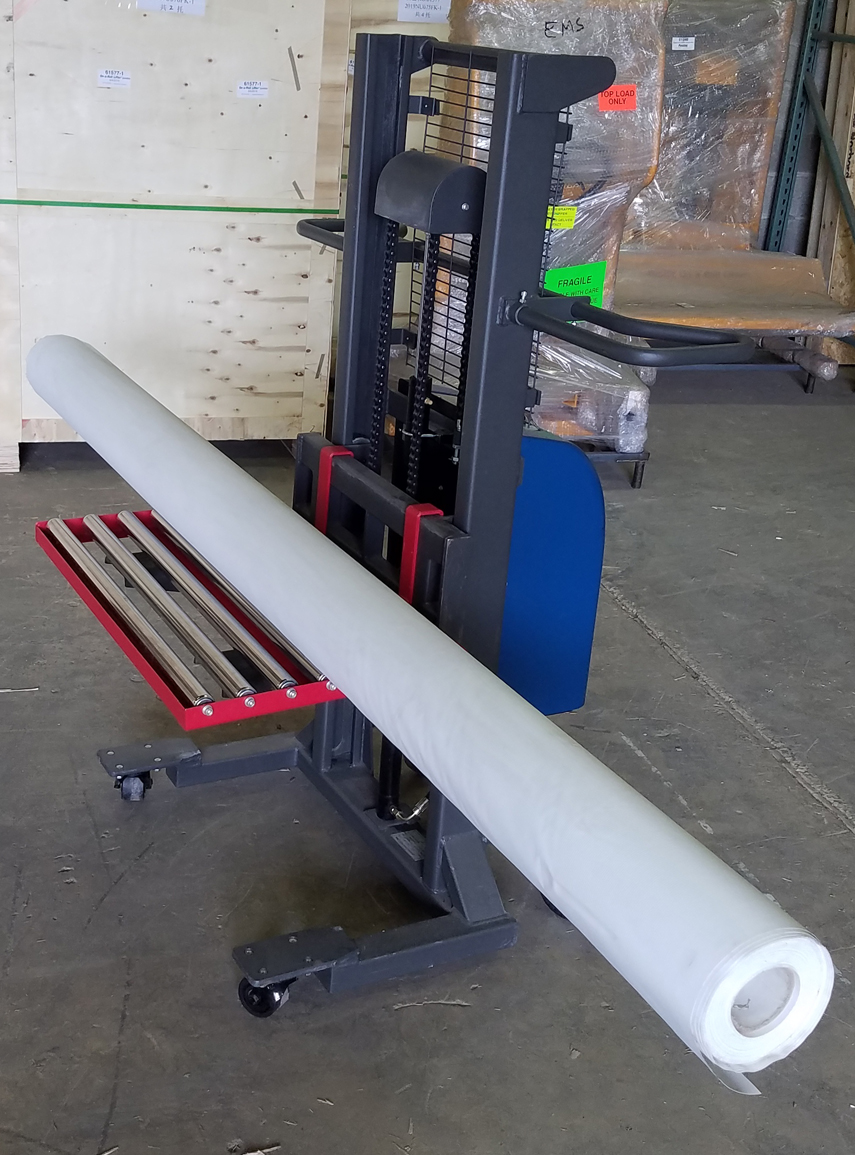

63215 Roller Platform

#63215 Roller Platform enables operators to feed rolls directly into the printer without having to unload them from the tray. Overall size 800 x 495mm
63292 Tray with Roll Ramp

#63292 Tray with Roll Ramp enables operators to push rolls on the floor up onto the tray
