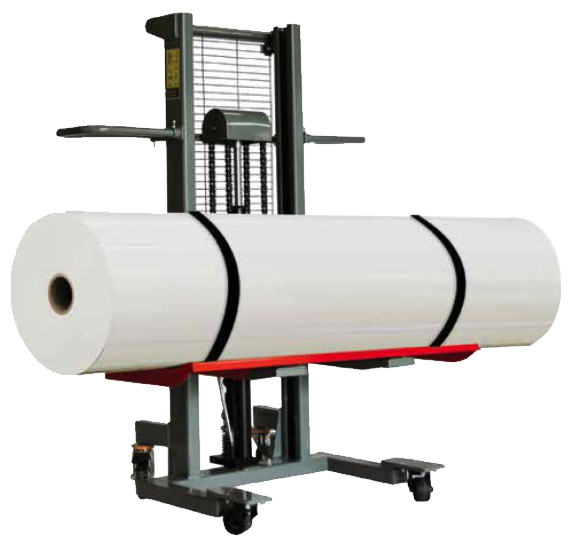

Jumbo 59” H On-A-Roll Lifter® Model 61577

Best for EFI Regianni, Matan, and Vanguard Printers. One operator can easily lift rolls as heavy as 990 lbs., as wide as 16’ 4 inches and with diameters as great as 19.6 inches. Designed in collaboration with EFI, Foster On-a-Roll Lifter® Jumbo is perfect for businesses operating grand- or extra-wide printers, fabric printers or those handling floor coverings and similar materials.
Important Features
- Pair of heavy-duty swivel casters with easy step-on locking brake
- Reduces on-the-job injuries and enables all workers to move heavy rolls
- User-friendly operation avoids costly and dangerous handling mistakes that damage media
- Rugged construction ensures long lifter life
- Single-person operation saves labor and time
2-year warranty on all hydraulics and media tray.
5-year warranty on cross bars
| SPECIFICATIONS | MODEL 61577 |
| ROLL WEIGHT CAPACITY | 990 lbs. |
| MAX. LIFT HEIGHT | 59” |
| MAX. ROLL WIDTH | 16.’ 5” |
| MAX. ROLL DIAMETER | 19.6” |
| WIDTH X DEPTH | 47.24” x 30.51” |
| HEIGHT | 61.22” |
| Weight | 295 lbs. |
| BOTTOM FORK CLEARANCE | 4.3” |
* Lift Height is measured from the floor to the center of a 12” diameter roll on the tray
Optional Trays for Jumbo
63119 Roller Ball Tray

#63119 Roller Ball Bearing Tray allows operators to access and load rolls stored in racks directly onto the tray without lifting
63215 Roller Platform

#63215 Roller Platform enables operators to feed rolls directly into the printer without having to unload them from the tray. Overall size 800 x 495mm
63292 Tray with Roll Ramp

#63292 Tray with Roll Ramp enables operators to push rolls on the floor up onto the tray
